Cordweave Conveyor Belt
OR Compound Balanced Conveyor Belt

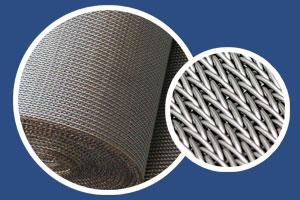

Cordweave conveyor belt provides super smooth carry surface based its extremely close and flat mesh properties. Because of this, cordweave belt also provides a uniform heat transfer across the belt to make it a popular choice in a wide variety of high temperature and heavy load applications, such as baking and annealing over mechanical components etc.
How it’s made? Cordweave conveyor belt is reinforced version of spiral conveyor belt which has more spirals and cross rods to make high density and flat surface.

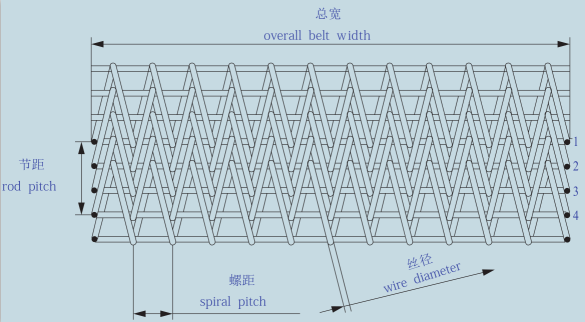

Left-wound and right-wound spirals are alernately arranged and jointed with sraight rods. If rod pitch Is less than two-fold spiral pitch, belt is called A2. If rod pitch is equal to or greater than two-flod spiral Pitch,belt is called F2.
Cordweave belt weight list:
| Specification | Weight(kg/m2 ) | Specification | Weight(kg/m2 ) |
| F2-8.5-30-6.0-4.0 | 43.5 | A2-9-16-4.0-3.2 | 30.5 |
| F2-7.5-26-4.0-3.2 | 28.4 | A2-8-14-3.2-3.0 | 28.3 |
| F2-6.0-20-3.2-2.6 | 14.8 | A2-6-8-2.6-2.0 | 21.0 |
| F2-4.2-15-2.6-2.0 | 20.2 | A2-5-6-2.0-1.8 | 20.2 |
| F2-3.4-14-2.0-1.4 | 20.2 | A2-4-3-1.4-1.4 | 19.3 |
| F2-3.0-12-1.8-1.4 | 20.2 | ||
| F2-2.6-10-1.6-1.2 | 11.4 |
Cordweave belt is commonly produced by stainless steel 304 wires, other grade materials are also available by request. Cordweave belt can be customized with cross flights and side plates by various sizes. The choice of chain and rod can follow customer specific application.
Besides, we also provide compatible roller/sprocket and shaft according to belt design. Contact us for specifications!
High Density Design
- Cordweave belt surface is flat and smooth, the belts can carry small items and unstable products.
- Cordweave belt allowable tension is high, so that heavy load can be transported.
- Cordweave belt strength against pressure high, so that the belts can be used for processing under pressure.
- Cordweave belt can be used at high temperature with lowest physical change.
- Cordweave belt can be used for textile producs refining and cleaning process.

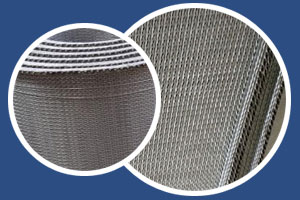

Special Edge Treatment
Cordweave conveyor belt is composed by wire spiral and straight rod. Once belt is finally assembled, it will be moved to welding stage which is handled by special welding technique. This process may repeat depends the result of polishing tests. The sole purpose is to ensure the belt maximum strength under various working conditions.
Besides, the belt edges can be bended with any height guard which is popular choice for heat treatment application.
Chain & Side Guard

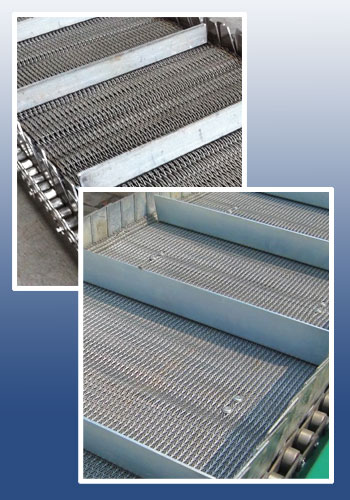

This cordweave conveyor belt can be deeply custom configured via side guard, cross flight and roller conveyor chain.
By this way, cordweave belt can be very flexible to work with various applications like heat treatment, cleaning, heavy load material handling etc. Due to its strong design, it’s ideal choice for long distance conveyor system.
Conveyor belt and roller chain can be with any available specifications to work with specific needs.
Cordweave Belt Spiral & Wire List
Here’s table list of some popular sizes of spiral and wire diameter.
| Model | Coil pitch(mm) | Coil wire diameter(mm) | Cross wire pitch(mm) | Cross wire diameter(mm) | Number of cross wires per coil(mm) |
|---|---|---|---|---|---|
| GYC-01 | 5.08 | 1.22 | 3.05 | 1.22 | 3 |
| GYC-02 | 11.29 | 2.03 | 4.35 | 2.03 | 4 |
| GYC-03 | 10.16 | 2.03 | 5.08 | 2.64 | 4 |
| GYC-04 | 4.24 | 0.91 | 2.24 | 1.22 | 4 |
| GYC-05 | 8.47 | 1.63 | 3.63 | 1.63 | 4 |
| GYC-06 | 6.35 | 1.22 | 2.82 | 1.22 | 4 |
| GYC-07 | 8.71 | 1.6 × 1.3 | 3.9 | 1.63 | 5 |
Custom Engineering Design
Our experienced engineering dept be able to offer quick design for your various conveyor belt requirements. We also give valuable suggestions that are based numorous existing production experience.
If you need any additional information to our conveyor belt, just call us or send us inquiry below!
Stainless Steel Property Table
Here’s table list of stainless steel for cordweave belt and its property. Depends the specific application requirement, we can also use other grade stainless steel wire and plate.
|
Grade
|
Composition(%)
|
Temperature
resisting
|
Specifications
|
|||||
|
C
|
Si
|
Mn
|
Ni
|
Cr
|
Mo
|
|||
|
1Cr13
|
≤0.15
|
≤0.6
|
≤0.6
|
–
|
12-14
|
–
|
650℃
|
Normal conveyor use
|
|
1Cr17
|
≤0.15
|
≤0.6
|
≤0.6
|
–
|
12-18
|
–
|
650℃
|
Normal conveyor use
|
|
304M
|
≤0.06
|
≤1.0
|
≤0.6
|
8.9-10
|
18-20
|
–
|
920℃
|
Normal conveyor use
|
|
304L
|
≤0.03
|
≤1.0
|
≤0.6
|
9-13
|
18-20
|
–
|
920℃
|
intercrystalline corrosion
|
|
316
|
≤0.08
|
≤1.0
|
≤0.6
|
10-14
|
16-18
|
2-3
|
920℃
|
Anti corrosion |
|
316L
|
≤0.03
|
≤1.0
|
≤0.6
|
12-15
|
16-18
|
2-3
|
920℃
|
intercrystalline corrosion |
|
309S
|
≤0.08
|
≤1.0
|
≤0.6
|
12-15
|
22-14
|
–
|
1000℃
|
Continuous high temperature |
| 310s |
≤0.08
|
≤1.5
|
≤0.6
|
19-22
|
24-26
|
–
|
1100℃
|
High temperature & heavy hit resisting
|
|
314
|
≤0.25
|
1.5-3.0
|
≤0.6
|
19-22
|
23-26
|
–
|
1200℃
|
Antioxidant plus all 310S
|
|
Cr20Ni80
|
≤0.15
|
0.4-1.3
|
≤0.6
|
72-78
|
20-23
|
–
|
1200℃
|
Antioxidant & high temperature resisting |
